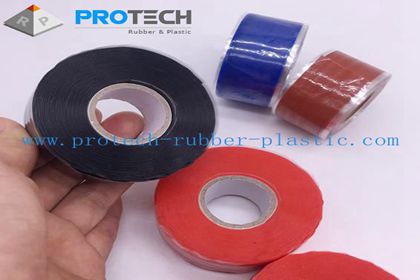

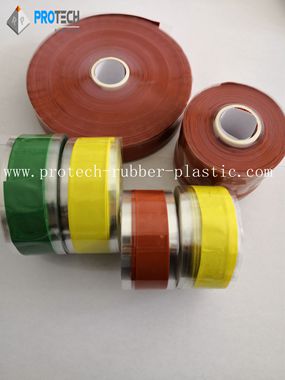

The self-fusing Silicone Tape
Item No.: Protech-SF001 The self-fusing Silicone Tape has good ductility. The insulation protection at H level can work for a long time at --50°C - 250°C, the emergency overload temperature can reach 300 degrees, and the thermal conductivity is good, which is conducive to the heat dissipation of the cable connector
|
| General Specifications | |
| ITEM | Silicone Rubber Self-fusing Adhesive Tape |
| material | silicone rubber |
| type | Insulation Tape |
| thickness | 0.3mm~2.5mm |
| Width | 20mm, 25mm, 50mm |
| Length | 2.5m, 3m, 5m, 10m |
| Color | Yellow, Black, Red, Bule, Grey, Tranparent,Gree, White or others |
| Temp Range | -60C°~ 250 C° |
| feature | Strong Adhesion/ self-melting |
| usage | rescue, repair and protect |
| Technical data | ||
| Performance | Typical data | Test Method |
| Hardness | 50A | ASTM D2240 |
| tensile strength | 8MPa | ASTM D412 |
| Elongation | 500% | ASTM D412 |
| Self adhesive strength | 6.3N/cm | ASTM D412 |
| Dielectric strength | 35KV/mm | |
| breakdown voltage | 9.5KV/0.5mm | ASTM D149 |
| Water resistance | 720hr without loosening | Water immersion at 25 degrees centigrade |
| Thickness | 0.5mm | ASTM D1000-76 |
| Fusion | Pass | |
| UV Resistance | Pass | ASTM D 4388 |
| Ozone Resistance | Pass | ASTM D 4388 |
| Xenon-arc exposure@1008h | Pass | ASTM D 4388 |

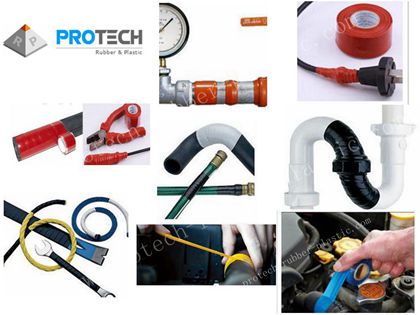

| • Automotive repair | |
| • Jacketing high voltage terminations | |
| • Motor lead insulation | |
| • Boat rigging wrapping | |
| • Flexible heater repair | |
| • Extension cord "connection" wrapping | |
| • Heavy duty industrial pipe wrapping | |
| • Tool handle wrappingr for a great non-slip grip | |
| Applications | • "Final wrap" for Electrical distribution connections |
| • Power & hand toll insulation | |
| • Underwater uses | |
| • Emergency radiator hose repairs; emergency insulating&barrier tape | |
| • Fishing industry uses | |
| • Military applications | |
| • Insulating generator coils | |
| • Temporary hose repairs | |
| • Harness wrapping: automotive, aircraft, protective |
